8mm OD Molybdenum Protection Tube with 5mm ID × 600mm Length for High Temperature Applications
8mm Molybdenum Protection Tube | 600mm Mo Thermocouple Tube Manufacturer
$100.00
High purity molybdenum protection tube with 8mm outer diameter, 5mm inner diameter and 600mm length is designed for tungsten-rhenium thermocouple protection, vacuum furnaces and high-temperature measurement systems. Custom dimensions are available.
Product Overview

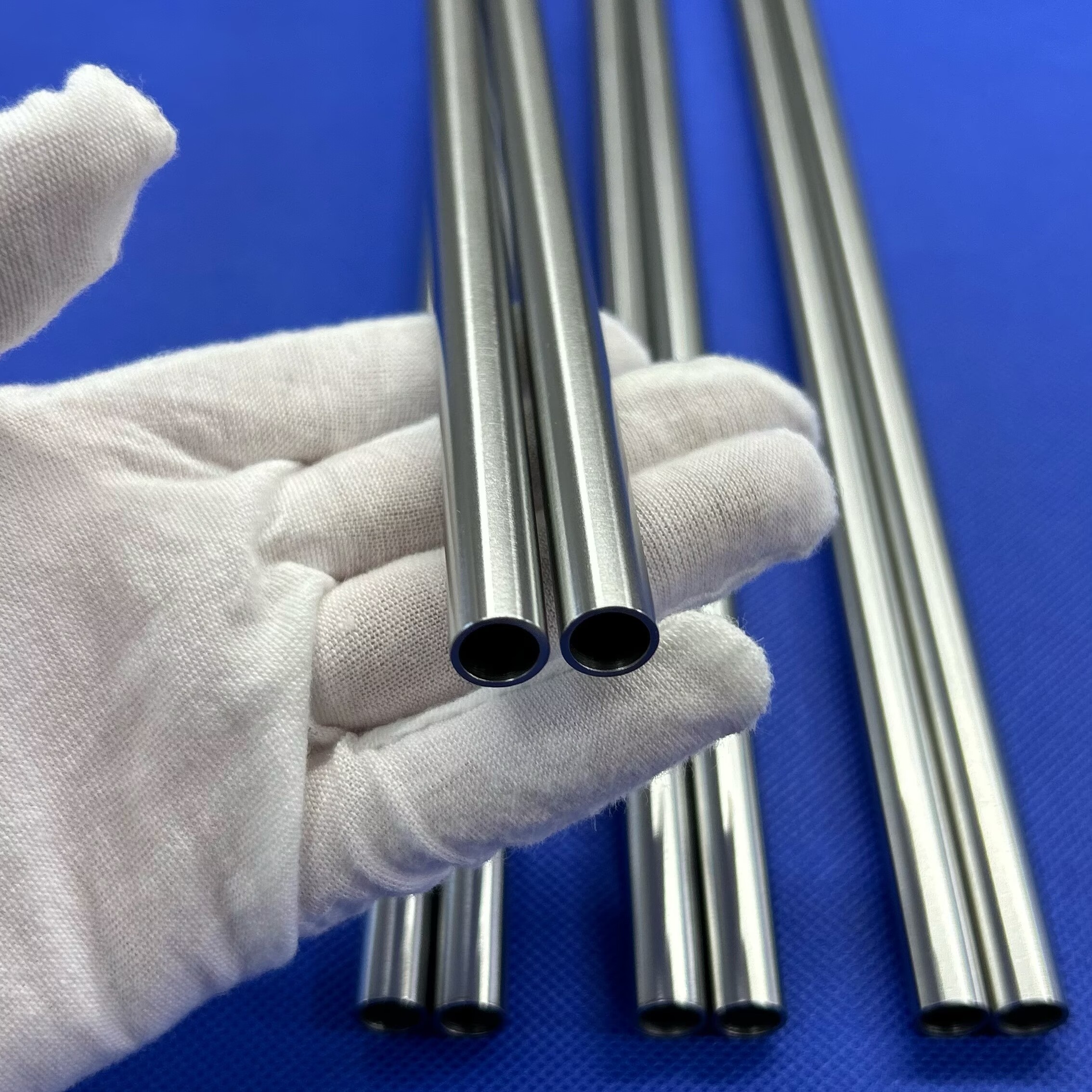

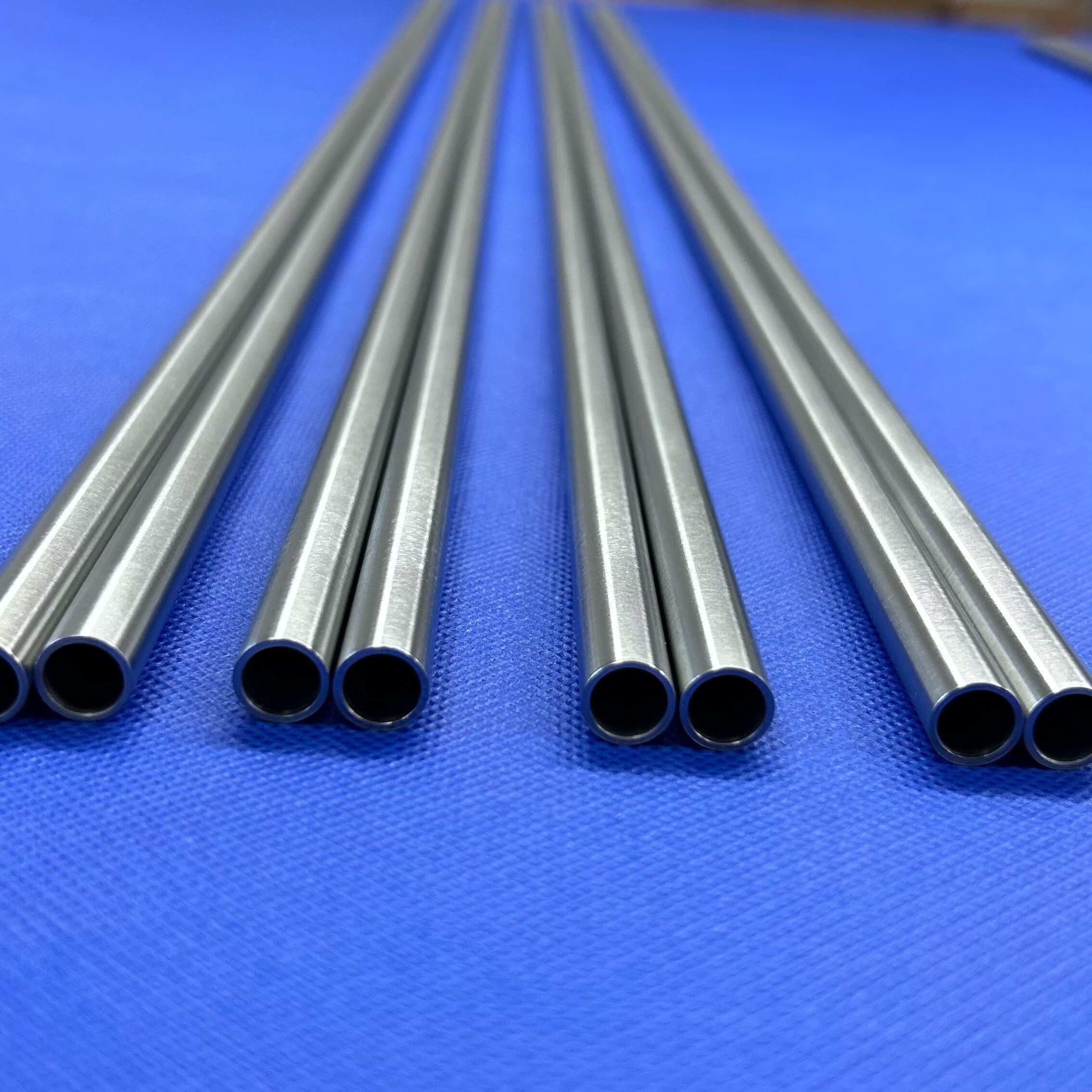

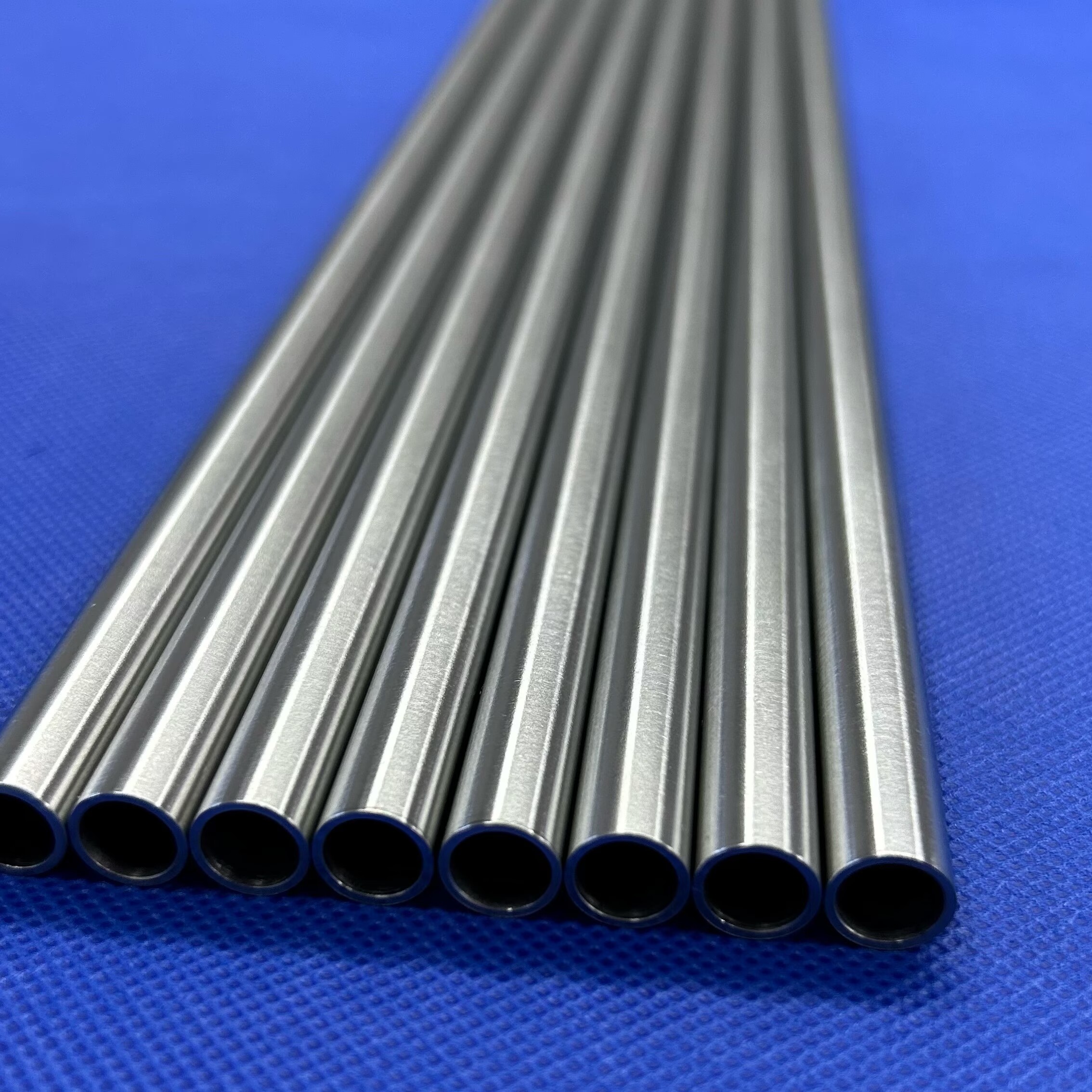

8mm OD × 5mm ID High Purity Molybdenum Protection Tube
ZSWMO manufactures precision molybdenum protection tubes for high-temperature measurement and vacuum furnace applications.
This molybdenum tube features an outer diameter of 8mm, inner diameter of 5mm and length of 600mm, providing accurate dimensions and reliable protection for temperature sensors operating under extreme conditions.
Molybdenum is widely selected for thermocouple protection applications because of its high melting point, excellent thermal stability, low thermal expansion and good mechanical strength at elevated temperatures.
Our molybdenum protection tubes are commonly used with tungsten-rhenium (W-Re) thermocouples in vacuum furnaces, sapphire growth equipment, semiconductor processing systems and other high-temperature industrial equipment.
Key Features
Material: High Purity Molybdenum
Purity: ≥99.95%
Outer Diameter: 8mm
Inner Diameter: 5mm
Length: 600mm
Excellent High Temperature Resistance
Stable Performance in Vacuum Environment
Good Thermal Conductivity
Low Thermal Expansion
Precision Dimensional Control
Custom Manufacturing Available
Applications
W-Re Thermocouple Protection
Molybdenum protection tubes provide reliable protection for tungsten-rhenium thermocouples in extreme temperature environments.
Vacuum Furnace Temperature Measurement
Used in vacuum furnaces for accurate and stable temperature monitoring.
Sapphire Crystal Growth Equipment
Suitable for high-temperature furnace systems used in sapphire production.
Semiconductor Processing
Applied in high-purity thermal processing equipment.
Laboratory High Temperature Testing
Used for research equipment requiring precise temperature measurement.
Technical Specifications
Item | Specification |
|---|---|
Product Name | Molybdenum Protection Tube |
Material | Pure Molybdenum (Mo) |
Purity | ≥99.95% |
Outer Diameter (OD) | 8 mm |
Inner Diameter (ID) | 5 mm |
Length | 600 mm |
Wall Thickness | 1.5 mm |
Surface Finish | Machined / Polished |
Application | Thermocouple Protection & High Temperature Furnace |
Customization | Available |
Manufacturing Process
ZSWMO provides precision molybdenum tube processing including:
Cutting
Grinding
Precision machining
Dimensional inspection
Surface finishing
Custom production according to drawings
Custom Molybdenum Protection Tube Service
We can manufacture molybdenum protection tubes according to:
Outer diameter requirements
Inner diameter requirements
Length requirements
Thermocouple dimensions
Furnace design
OEM and custom orders are welcome.
Why Choose ZSWMO
20+ years tungsten and molybdenum manufacturing experience
Professional refractory metal processing
High purity molybdenum materials
Precision tube machining capability
Stable product quality
Worldwide industrial supply experience
Related Products
Tungsten-Rhenium Thermocouple
Molybdenum Tube
Tungsten Tube
Molybdenum Tube Processing
Tungsten Thermocouple Protection Tube
FAQ
What is the size of this molybdenum protection tube?
The standard size is 8mm outer diameter, 5mm inner diameter and 600mm length.
What thermocouples can be used with this tube?
It is commonly used with tungsten-rhenium (W-Re) thermocouples for high-temperature measurement.
Can you customize molybdenum protection tubes?
Yes. OD, ID, wall thickness and length can be customized.
What purity molybdenum do you use?
Our standard molybdenum material purity is ≥99.95%.
What applications require molybdenum protection tubes?
Main applications include vacuum furnaces, sapphire growth furnaces, semiconductor equipment and high-temperature testing systems.
Request a Quote
Looking for a reliable molybdenum protection tube manufacturer?
Send us your required dimensions or drawings. ZSWMO provides high purity molybdenum tubes, thermocouple protection tubes and customized refractory metal solutions.
 |  |
|---|---|
 |  |
