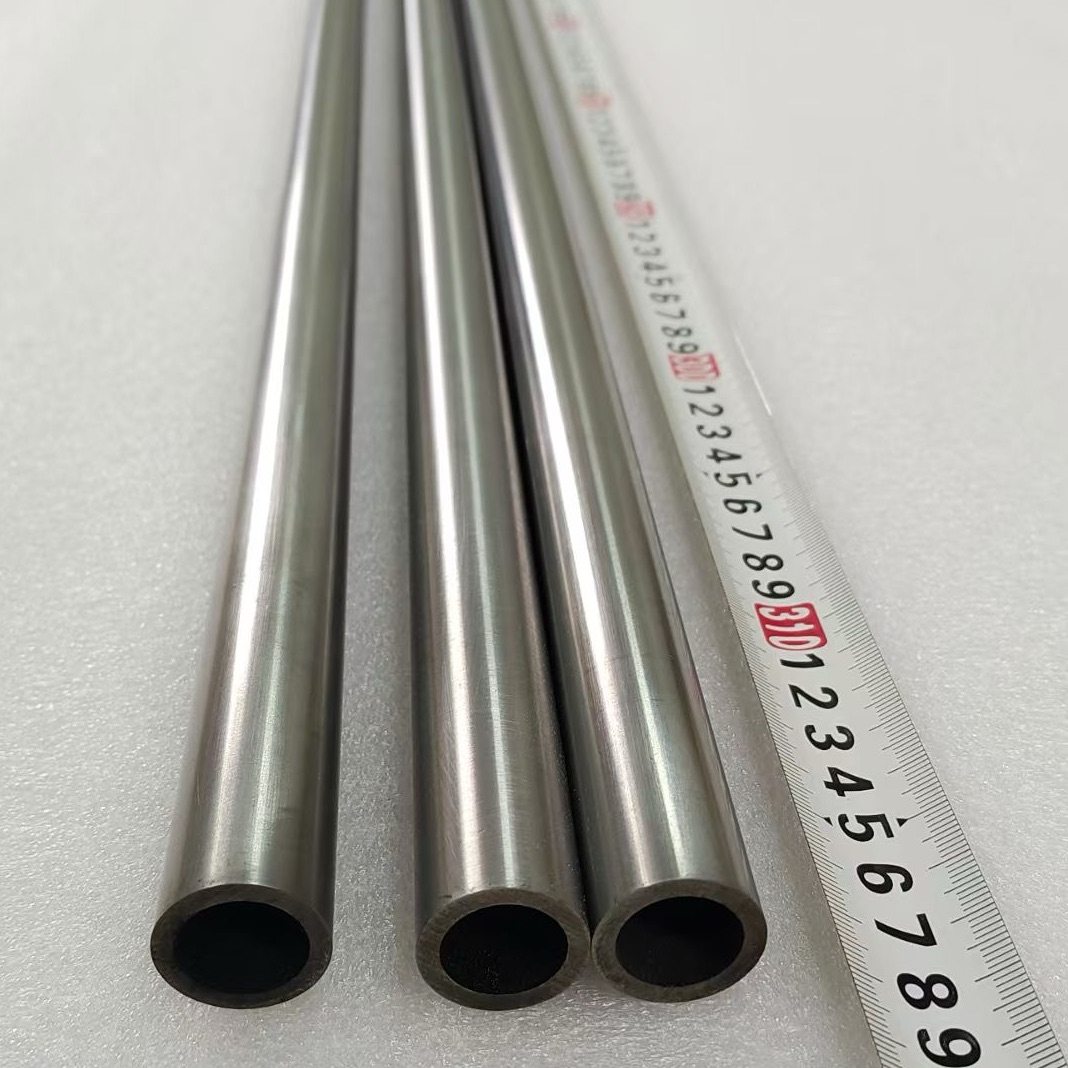

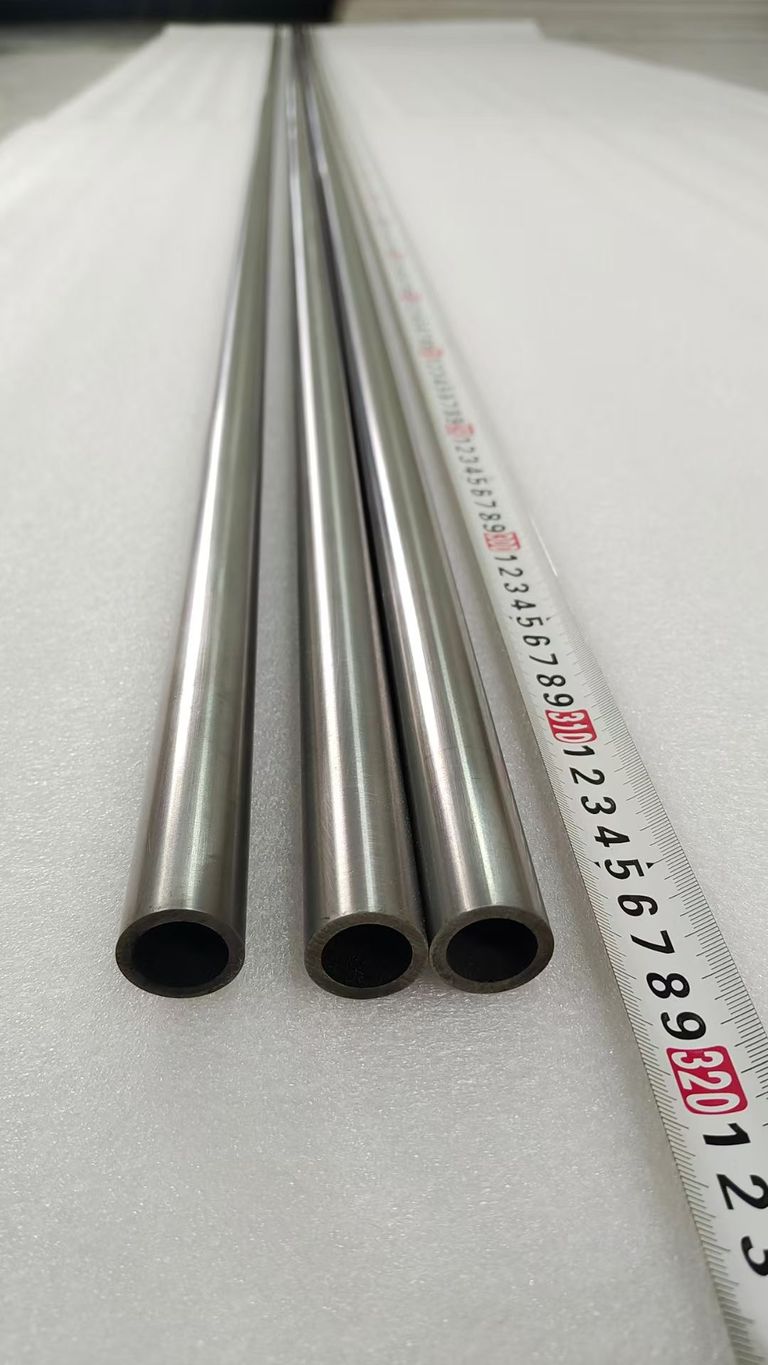

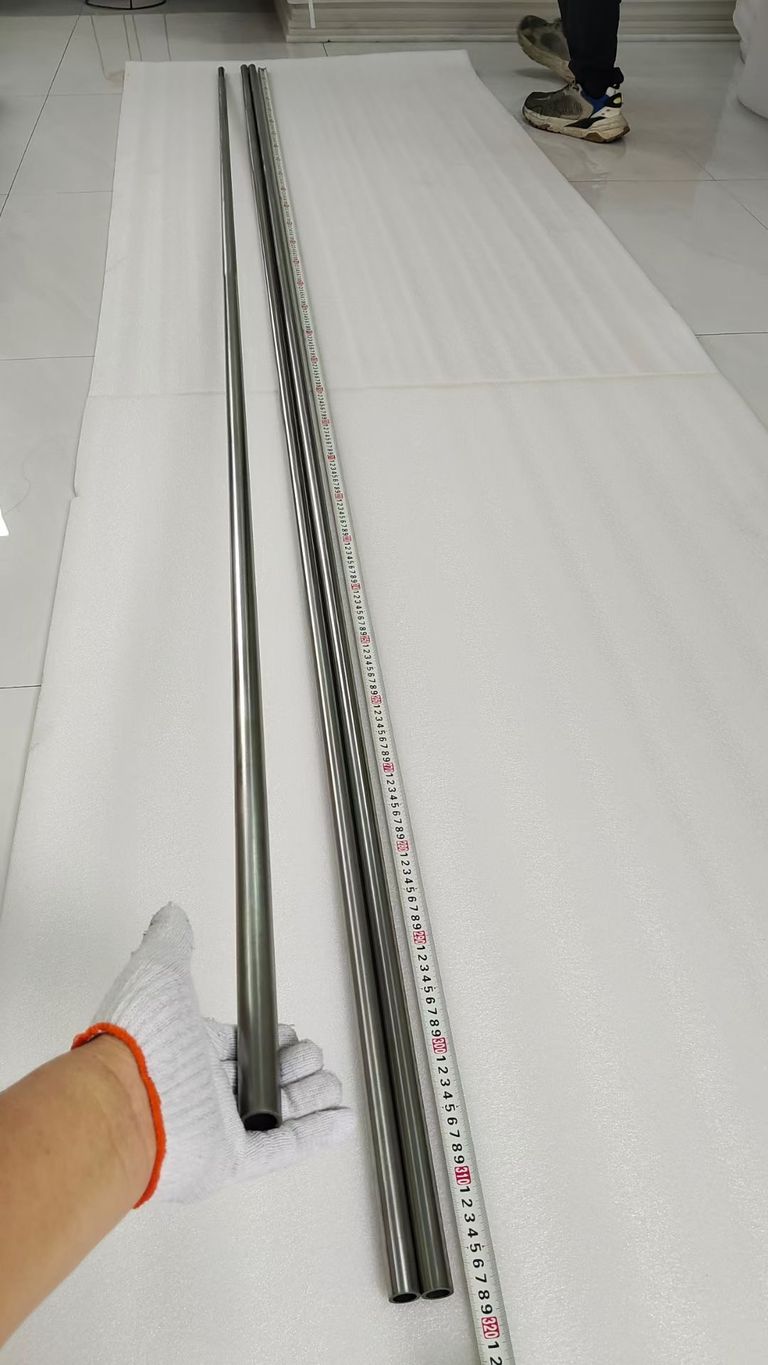

Extra Long Mo-La Molybdenum Tube Φ12×9×3180mm for High Temperature Applications
Mo-La Molybdenum Tube Φ12×9×3180mm | 1800℃ High Temperature Tube Manufacturer
$1000.00
Extra long Mo-La molybdenum tube with Φ12mm outer diameter, Φ9mm inner diameter and 3180mm length is designed for high-temperature furnace systems, tungsten-rhenium thermocouple protection and precision thermal applications. The lanthanum-doped molybdenum material provides improved high-temperature stability and service life.
Product Overview
Extra Long Mo-La Molybdenum Tube for High Temperature Applications
ZSWMO manufactures extra long molybdenum-lanthanum (Mo-La) alloy tubes for demanding high-temperature industrial applications.
This tube features:
Outer diameter: 12mm
Inner diameter: 9mm
Length: 3180mm
Wall thickness: 1.5mm
Mo-La alloy combines the excellent properties of molybdenum with enhanced high-temperature performance. Compared with pure molybdenum, lanthanum oxide reinforced molybdenum provides improved recrystallization resistance and better dimensional stability during long-term high-temperature operation.
Our Mo-La tubes are widely used in vacuum furnaces, tungsten-rhenium thermocouple protection systems, semiconductor equipment and other thermal processing applications requiring reliable performance up to approximately 1800°C.
ZSWMO provides customized molybdenum alloy tube manufacturing according to customer drawings, dimensions and application requirements.
Key Features
Material: Molybdenum Lanthanum Alloy (Mo-La)
Outer Diameter: Φ12mm
Inner Diameter: Φ9mm
Length: 3180mm
Wall Thickness: 1.5mm
High Temperature Resistance
Excellent Dimensional Stability
Improved Recrystallization Resistance
Good Vacuum Performance
Precision Tube Processing
Custom Sizes Available
Applications
W-Re Thermocouple Protection Tube
Mo-La tubes are widely used as protective tubes for tungsten-rhenium thermocouples in high-temperature measurement systems.
Vacuum Furnace Equipment
Suitable for furnace temperature measurement, heating systems and structural components.
Semiconductor Manufacturing
Used in high-purity thermal processing equipment requiring stable refractory metal components.
Sapphire Crystal Growth Furnace
Suitable for high-temperature furnace systems.
Laboratory High Temperature Equipment
Used in precision thermal testing systems.
Technical Specifications
Item Specification
Product Name Mo-La Molybdenum Tube
Material Molybdenum Lanthanum Alloy
Outer Diameter Φ12 mm
Inner Diameter Φ9 mm
Wall Thickness 1.5 mm
Length 3180 mm
Working Temperature Up to 1800℃
Surface Finish Machined / Polished
Application High Temperature Furnace & Thermocouple Protection
Customization Available
Advantages of Mo-La Tube
Compared with pure molybdenum tube, Mo-La alloy tube offers:
Better High Temperature Stability
Maintains mechanical strength during long-term heating.
Improved Recrystallization Resistance
Helps maintain structural integrity after repeated heating cycles.
Longer Service Life
Suitable for demanding furnace environments.
Manufacturing Capability
ZSWMO provides:
✔ Long length molybdenum tube processing
✔ Mo-La alloy tube machining
✔ Precision OD/ID control
✔ Thin wall tube manufacturing
✔ Custom length production
✔ Drawing-based OEM manufacturing
Why Choose ZSWMO
20+ years tungsten and molybdenum manufacturing experience
Professional refractory metal processing
Mo and Mo-La alloy product capability
Long size tube manufacturing experience
High precision machining
Factory direct supply
Global industrial customers
Related Products
Molybdenum Tube Processing
8×5×600mm Molybdenum Protection Tube
20mm OD Molybdenum Tube
Tungsten Tube
W-Re Thermocouple
FAQ
What is Mo-La molybdenum tube?
Mo-La tube is a molybdenum alloy tube strengthened with lanthanum oxide, providing improved high-temperature stability.
What are the dimensions of this tube?
This product size is Φ12mm OD × Φ9mm ID × 3180mm length.
What temperature can Mo-La tube withstand?
Mo-La molybdenum tubes are commonly used in high-temperature environments around 1800℃ depending on operating conditions.
Can you manufacture extra long molybdenum tubes?
Yes. ZSWMO can produce customized long-length molybdenum and Mo-La tubes according to requirements.
Can you customize diameter and wall thickness?
Yes. OD, ID, wall thickness and length can be customized.
Request a Quote
Looking for a reliable Mo-La molybdenum tube manufacturer?
Send us your drawing, dimensions or application requirements. ZSWMO provides high-quality molybdenum alloy tubes and customized refractory metal solutions.
