Tungsten Rhenium Thermocouple: The Ultimate Solution for Ultra-High Temperature Measurement
When temperature measurement exceeds the limits of conventional sensors, especially above 1600°C, standard thermocouples such as Type K or Type S begin to fail. In such extreme environments, the tungsten rhenium thermocouple (W-Re thermocouple) stands out as one of the most reliable and accurate solutions.
As a professional manufacturer of tungsten tubes, molybdenum tubes, and high-temperature assemblies, we provide not only raw materials but also fully assembled tungsten rhenium thermocouples, designed for demanding industrial and research applications.
What Is a Tungsten Rhenium Thermocouple?
A tungsten rhenium thermocouple is a high-temperature sensor made from tungsten (W) and rhenium (Re) alloy wires. The most common types include:
Type C (WRe5-WRe26)
Type D (WRe3-WRe25)
These thermocouples operate based on the Seebeck effect, where a voltage is generated due to the temperature difference between two dissimilar metals, enabling precise temperature measurement.
Key Advantages of Tungsten Rhenium Thermocouples
1. Exceptional High-Temperature Capability
Operating range: up to 2300°C (4200°F) or higher
Ideal for extreme heat applications
2. Excellent Stability and Accuracy
Low drift at high temperatures
Superior long-term performance compared to noble metal thermocouples
3. Ideal for Vacuum and Inert Atmospheres
Performs best in vacuum, argon, or hydrogen environments
Requires protection in oxidizing atmospheres
Structure and Materials: Where Quality Matters
A tungsten rhenium thermocouple typically consists of:
🔹 Thermocouple Wires
The sensing element made of tungsten-rhenium alloy.
🔹 Protective Tube (Critical Component)
Common materials include:
Tungsten tube (best for ultra-high temperature and vacuum)
Molybdenum tube (cost-effective alternative)
Alumina ceramic (Al₂O₃) (for moderate high temperatures)
👉 As a manufacturer with in-house production of tungsten and molybdenum tubes, we ensure:
Better material purity
Consistent quality control
Longer service life
🔹 Insulators and Connectors
High-purity ceramic insulators
Customizable connectors and lead wires
Typical Applications
Tungsten rhenium thermocouples are widely used in:
🔥 Vacuum furnaces
💎 Sapphire and silicon crystal growth furnaces
🚀 Aerospace material testing
🧪 Laboratory high-temperature experiments
⚙ Powder metallurgy sintering processes
Why Choose a Complete Thermocouple Assembly?
While some buyers source wires or tubes separately, this often leads to:
Installation difficulties
Inconsistent performance
Shorter lifespan
By choosing a fully assembled tungsten rhenium thermocouple, you benefit from:
✔ Precision assembly and calibration
✔ Optimized material matching
✔ Custom design for your furnace or system
✔ One-stop sourcing (tube + sensor + accessories)
Selection Guide: How to Choose the Right W-Re Thermocouple
When selecting a tungsten rhenium thermocouple, consider:
Maximum operating temperature
Atmosphere (vacuum, inert gas, or reducing environment)
Required lifespan
Protection tube material
👉 Expert Tip:
For applications above 1800°C, we strongly recommend using a tungsten protection tube in a vacuum environment to maximize durability and measurement accuracy.
Common Challenges and How to Avoid Them
❌ Oxidation damage → Use protective tubes or inert atmosphere
❌ Signal instability → Ensure proper insulation and connection
❌ Short service life → Choose high-purity materials and proper design
Working with an experienced manufacturer can significantly reduce these risks.
Our Capabilities
We provide:

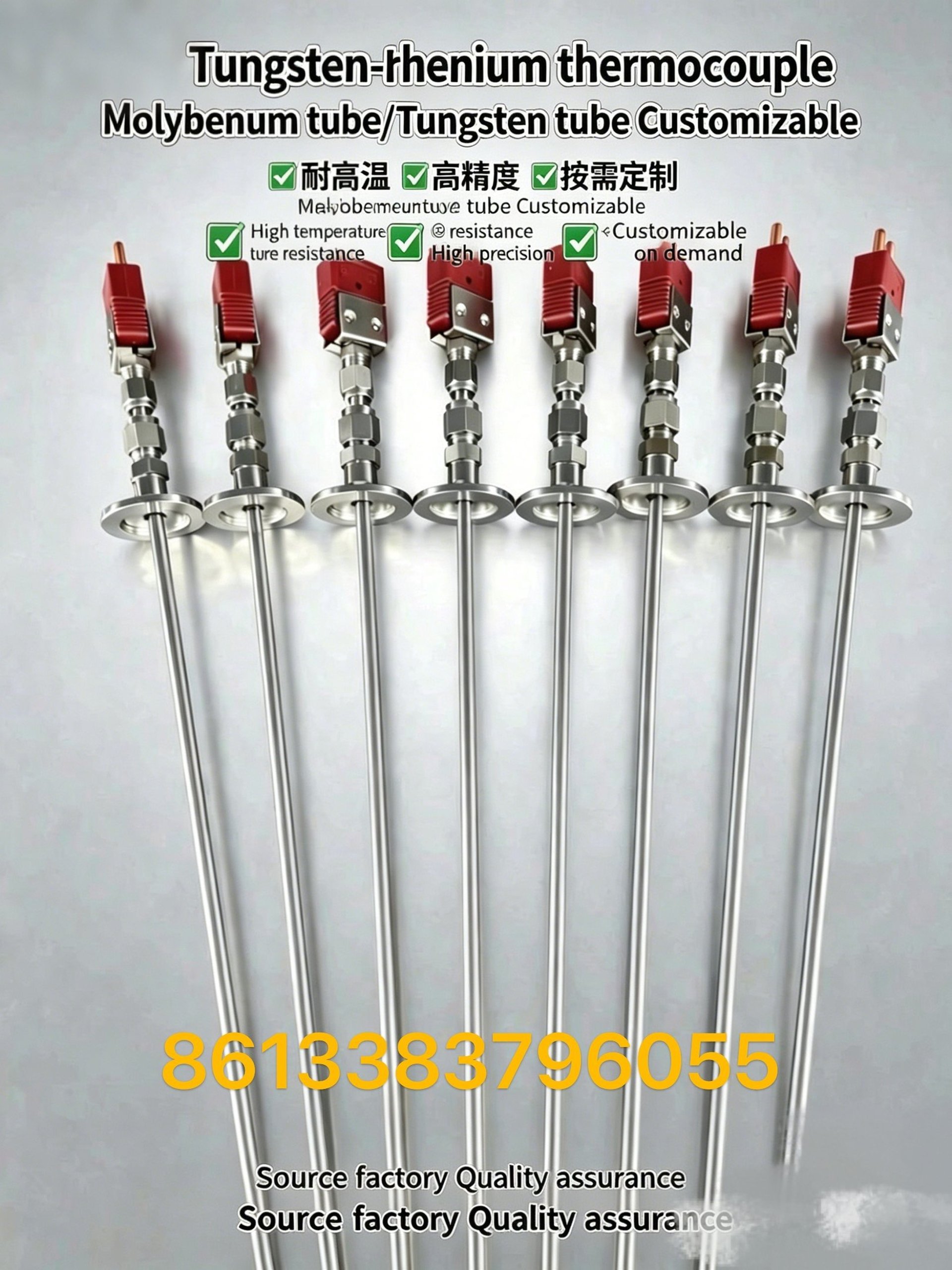

✔ Tungsten rhenium thermocouples (Type C & D)
✔ Custom tungsten tubes and molybdenum tubes
✔ High-temperature component solutions
✔ OEM & ODM manufacturing
With full control over raw materials and production, we deliver reliable, high-performance solutions tailored to your application.
